Parts of a Bike Wheel: Rim, Hub, Spokes, and More Explained

At a Glance: A bike wheel is made from a rim, hub, spokes, nipples, axle, and bearings. These parts work together to support the tire, connect the wheel to the bike, and let it rotate under load. Their design affects tire fit, handling, durability, comfort, and speed.

Most riders do not think much about wheel construction until something changes. A spoke may break, the hub may start to feel rough, or a stock wheelset may begin to limit the way the bike rides.

That is usually when terms such as internal rim width, bead seat diameter, spoke tension, and freehub start to matter. Understanding the parts of a bicycle wheel makes it easier to speak with a bike shop, find compatible replacement parts, and decide what you are actually getting when you upgrade.

The Main Parts of a Bike Wheel

Road, gravel, track, and commuter wheels all rely on the same basic components:

• Rim: The outer hoop that supports the tire

• Hub: The center of the wheel

• Spokes: The rods connecting the hub to the rim

• Nipples: Small fasteners that anchor and tension the spokes

• Axle: The shaft that secures the wheel to the bike

• Bearings: The internal components that allow the hub to rotate with limited friction

The design of each part can vary, but all six have to work together for the wheel to stay straight, spin smoothly, and handle the forces created while riding.

The Rim

The rim is the outer ring of the wheel. It supports the tire, gives the wheel its shape, and carries load as the bike travels over pavement, gravel, or uneven ground.

Several rim measurements affect fit and performance.

• Inner diameter: The rim’s bead seat diameter determines which tire size will fit. Tire compatibility depends on this measurement, not only the number printed on the tire.

• Internal width: The distance between the inside walls of the rim affects how the tire sits once mounted. Wider internal rims give wider tires more support and can improve stability at lower tire pressures.

• Material: Most bicycle rims are made from aluminum or carbon fiber. Aluminum is widely used because it is affordable and easy to service. Carbon gives wheel builders more freedom to create deeper, more aerodynamic profiles without adding the same amount of weight.

• Depth: Rim depth changes the way a wheel moves through the air. A deeper profile can reduce drag and help a rider maintain speed on open roads. A shallower rim will usually feel easier to control when crosswinds become strong.

On a rim brake wheel, the side of the rim also serves as the braking surface. Brake pads press against this area to slow the bike. A disc brake wheel does not need a rim brake track, which gives designers more freedom to shape the rim around aerodynamics, tire support, and handling.

The Hub

The hub sits at the center of the wheel. It holds the axle and the bearings, and it is what the whole wheel rotates around.

• Front hub: simpler, since the front wheel only has to roll.

• Rear hub: more involved. The rear hub carries the cassette or freewheel that your chain and rear derailleur use to shift gears.

• Axle: the shaft running through the hub. It clamps into the frame and fork to hold the wheel in place.

• Bearings: sealed or cup-and-cone bearings let the hub spin freely. Smooth bearings are one of the clearest signs of high-end wheels.

A single-speed or track bike uses a chain tensioner instead of a derailleur, but the rear hub still holds the wheel and the drive side together.

Spokes and Nipples

A wheel does not get its strength from thick spokes alone. It relies on balanced tension across the spokes running between the hub and rim.

As the wheel meets the road, the spokes distribute load through the structure. Their number, shape, material, and lacing pattern all affect the way the wheel responds.

• Spoke count: Many bicycle wheels use between 20 and 32 spokes, although counts vary by wheel type and purpose. Lower spoke counts may reduce weight and aerodynamic drag. Wheels intended for rough surfaces, heavier loads, or demanding daily use may use more spokes for added support.

• Lacing pattern: Spokes may run directly from the hub to the rim in a radial pattern or cross over other spokes in a crossed pattern. Crossed spokes are better able to handle twisting forces, which is why they are commonly used on rear wheels and disc brake wheels.

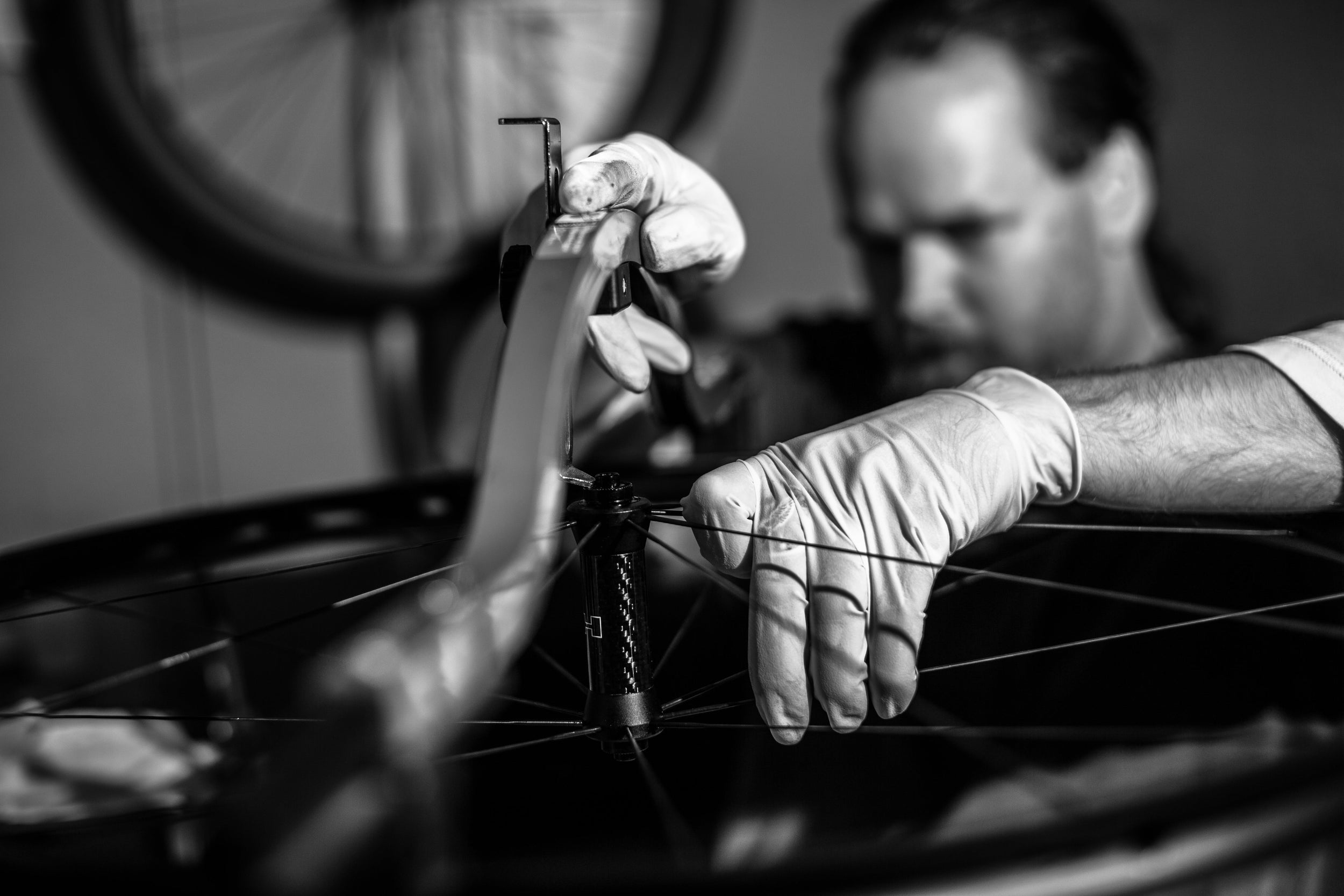

• Nipples: Each spoke threads into a nipple at the rim. Turning the nipple changes spoke tension. A wheel builder or mechanic uses these small adjustments to correct side-to-side movement and bring an out-of-true wheel back into alignment.

Park Tool’s wheel-truing guide is a useful reference for riders who want to understand the process. Truing a wheel takes patience, since changing the tension of one spoke can affect the spokes around it.

Even spoke tension helps the wheel stay straight and distribute load consistently over time. This is one reason hand-built wheels receive careful attention during assembly.

How the Wheel Works With Your Brakes

Your wheel and your brakes work as a pair, and the type of brake changes what the wheel needs to do.

Rim Brakes

Brake pads squeeze the sides of the rim when you pull the brake levers, and the brake calipers hold those pads. Braking wears the rim over time, so the rim has to double as a braking surface.

Disc Brakes

A rotor mounts to the hub, and the brake calipers and brake pads clamp the rotor instead of the rim. This keeps braking steadily in the wet and on long descents, and lets the rim focus on speed.

Most new road bikes and gravel bikes now ship with disc brakes, though rim brake wheels are still common and easy to service.

How the Wheel Connects to the Rest of the Bike

The wheel does not work alone. It drops into the frame, and knowing the frame parts around it helps when you fit or fix a wheel.

• Front wheel: sits in the fork. The fork's steerer tube runs up through the head tube at the front of the frame and connects to the handlebars.

• Rear wheel: sits in the rear triangle, held by the seat stays up top and the chainstays down low.

• Frame tubes: the top tube, down tube, and seat tube form the main frame. The seat post slides into the seat tube to hold the saddle.

• Bottom bracket: where the cranks spin. It threads or presses into the bottom bracket shell at the base of the frame, near the rear wheel and the drivetrain.

For any bike part term you do not recognize, Sheldon Brown's bicycle glossary is a solid bookmark.

Wheel Size, Types, and E-Bikes

Wheel size affects fit and feel, and different bikes use different standards.

• Road bike and gravel bike: most use 700c wheels; some gravel setups run smaller 650b wheels for wider tires.

• Wheel size basics: larger wheels roll over bumps and hold speed; smaller wheels accelerate quicker. Our guide on how to measure bike wheel size covers the numbers in detail.

• Electric bike: An electric bike often uses a hub motor built into the rear hub or front hub. A conversion kit can turn a standard bike into an e-bike by swapping in a motorized wheel.

Whatever the bike, the wheel is one of the components that most changes how it rides.

Choosing Wheels and Replacement Parts

Before replacing a wheel or one of its parts, think about where you ride and what you want the bike to do better.

• Riding style: A rider focused on racing or fast group rides may value aerodynamics and lower weight. Someone riding long recreational miles may care more about comfort, longevity, and predictable handling.

• Terrain: Deep rims can work well on smooth, open roads where holding speed matters. Gravel and broken pavement often call for wider rims, higher-volume tires, and a wheel build suited to repeated impacts.

• Compatibility: The wheel must match the bike’s axle standard, brake type, cassette, frame spacing, tire size, and intended tire pressure. A wheel can perform well and still be the wrong choice if one of those standards does not match.

• Comfort: The wheel is only one part of the setup. Tire width, casing, pressure, saddle choice, riding position, and rider weight also affect how harsh or smooth the bike feels.

• Maintenance: Replacement spokes, bearings, freehub parts, and brake surfaces may need service over time. It helps to know which parts are replaceable and how easily they can be sourced.

A rider moving away from basic stock wheels may notice quicker acceleration, better tire support, smoother hub rotation, or more stable handling. The difference depends on the wheel design and the limitations of the original setup.

The Wheel Is Where the Ride Comes Together

Every part of a bike wheel has a job. The rim holds the tire and shapes the aero profile. The hub, axle, and bearings let it spin. The spokes and nipples hold it true under load. Together they decide how your bike rolls, brakes, and holds up mile after mile. Once you know the parts, buying replacement parts or planning an upgrade gets a lot simpler.
