Disc Brake Wheelsets

Disc brakes reshaped road cycling, and HED helped lead that change. These disc brake wheelsets are carbon, hand-built, and wind tunnel tested, built for racing, training, and fast road riding.

Built for the Modern Road

Vanquish Series: full carbon, disc-specific, wind tunnel optimized
Jet Series: alloy rim base with a carbon fairing for aero speed and brake control
Wide internal widths that let modern tires roll with lower rolling resistance
Tubeless-compatible and hand-built in Minnesota

Sort by:

5 products

Save $195.00

AERO DISC WHEELS

Regular price From $1,105.00

Sale price From $1,105.00 Regular price ~~$1,300.00~~
Save $390.00

VANQUISH PRO

Regular price From $994.50

Sale price From $994.50 Regular price ~~$1,170.00~~
JET RC PRO SERIES (DISC BRAKE)

Regular price From $685.00

Sale price From $685.00 Regular price
Save $277.50

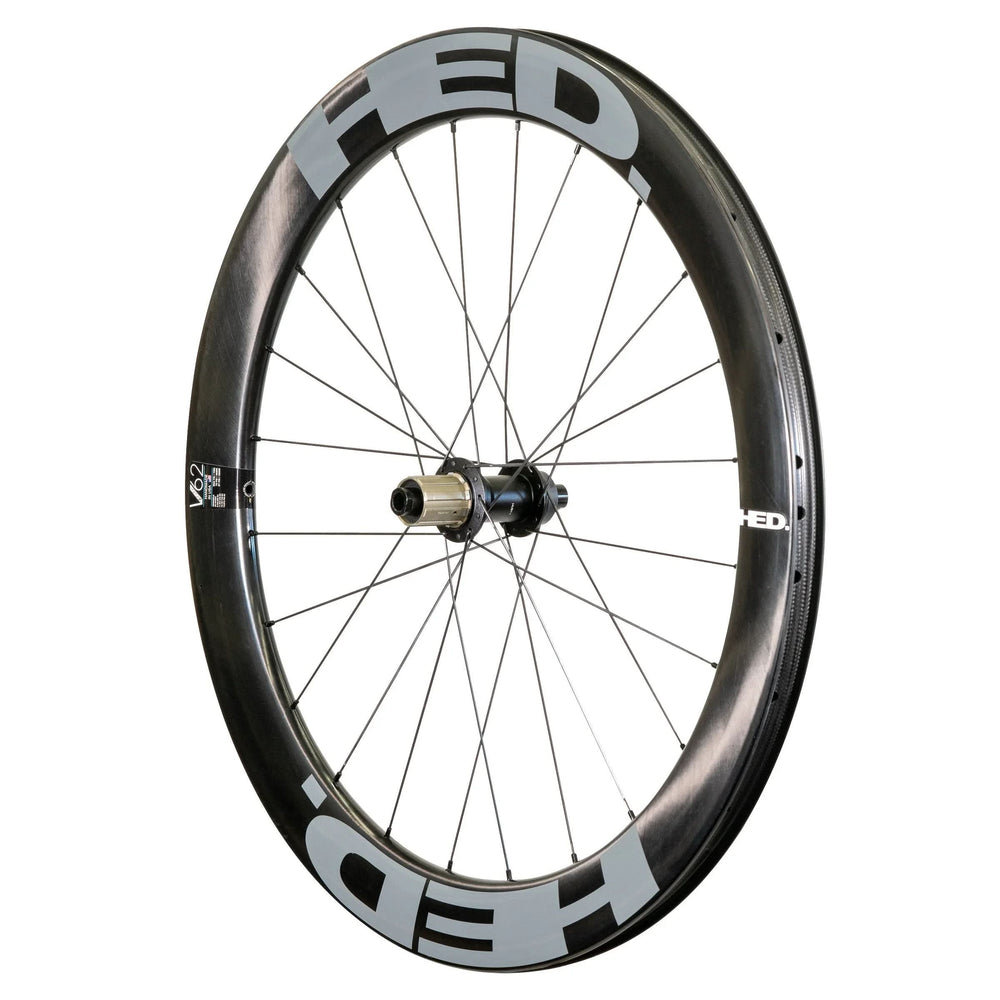

VANQUISH

Regular price From $722.50

Sale price From $722.50 Regular price ~~$850.00~~
Save $285.00

JET 180

Regular price $1,615.00

Sale price $1,615.00 Regular price ~~$1,900.00~~

Why Ride Disc Brake Wheels

Disc brakes move the braking surface from the rim to a rotor at the hub. That gives you steady, predictable stopping in the wet and on long descents, where rim brakes fade and wear the rim over time. It also frees the rim to run wider tires with more clearance, which is why most modern road frames are built around disc brakes.

HED pairs that with the wide rims it helped pioneer in road cycling. Wider internal widths let a modern tire sit true, roll with lower rolling resistance, and corner with support. The result is more control and more speed from the same effort.

HED's Disc Brake Wheel Lineup

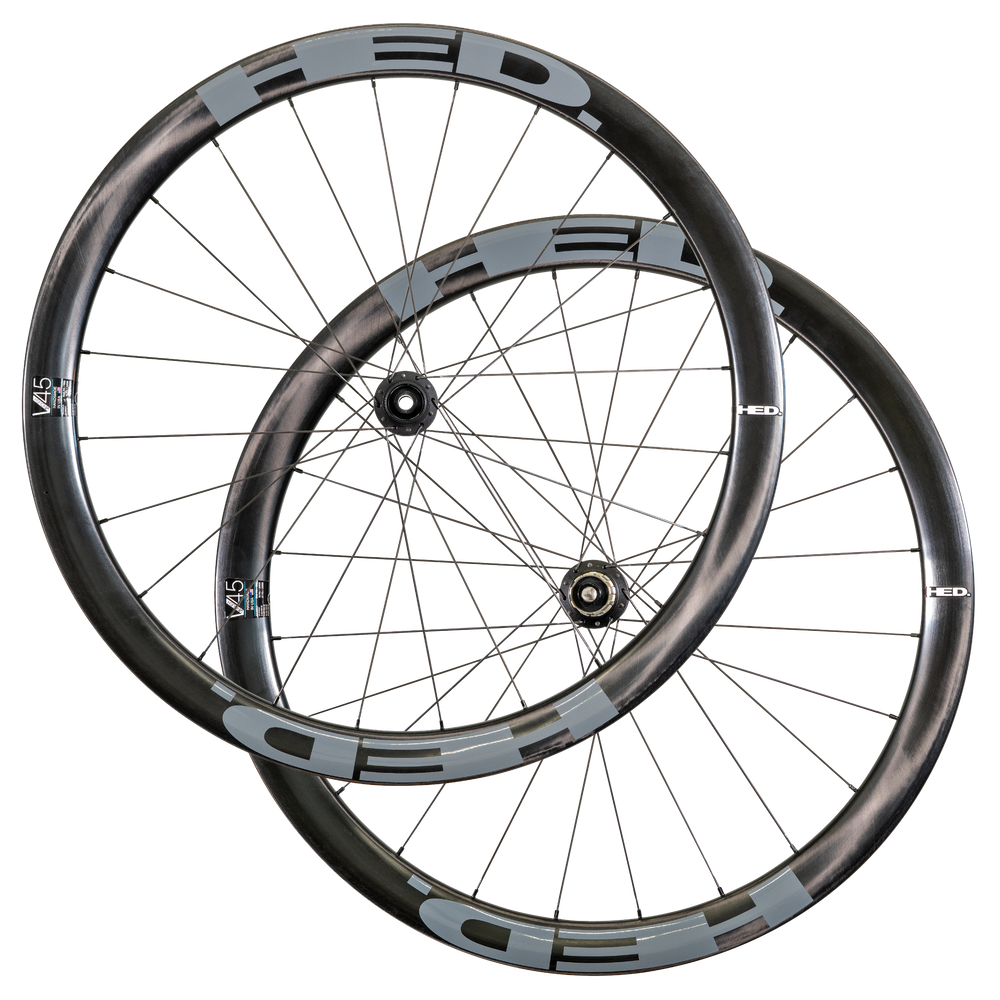

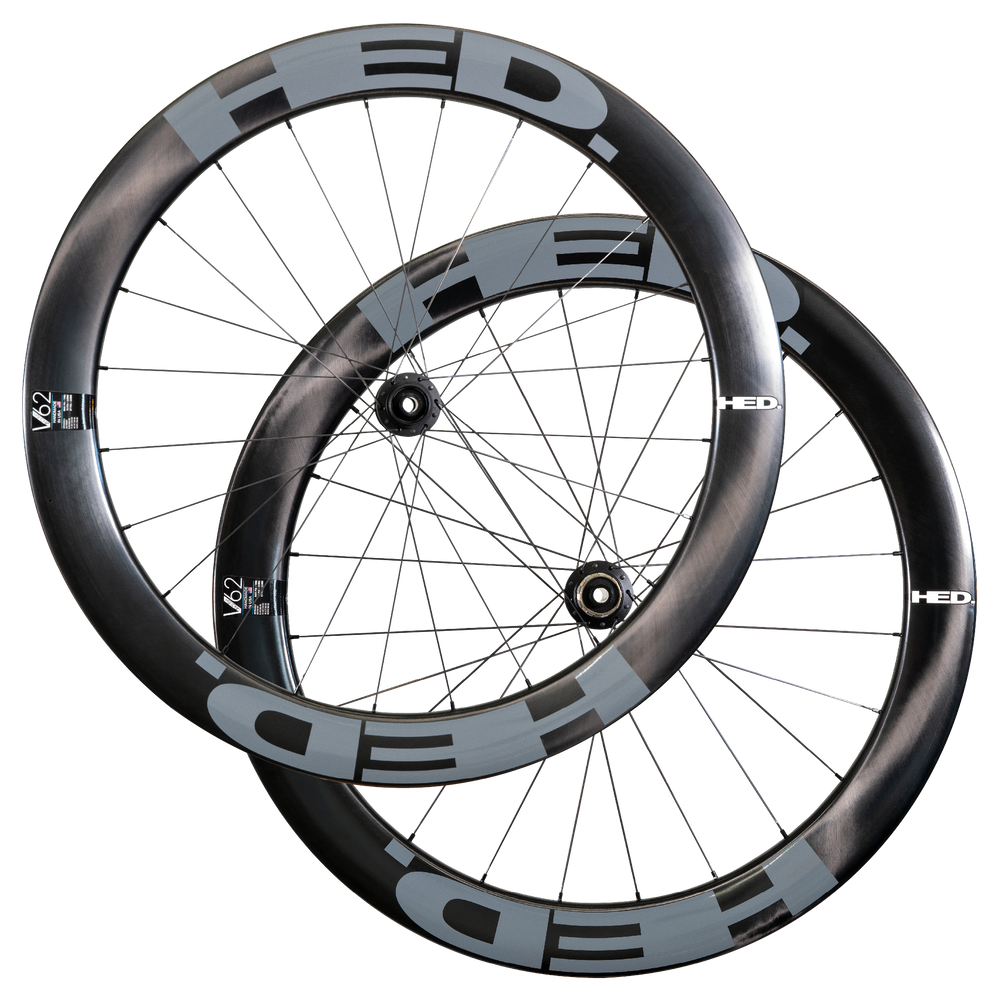

The carbon Vanquish is HED's aero disc brake wheel, built in 45mm, 62mm, 82mm, and full aero disc depths with a 22.4mm internal width, aimed at time trial, triathlon, and fast road riding. The Vanquish Pro runs the same profile in a lighter carbon layup. The Jet RC Pro pairs a carbon aero fairing with an alloy rim base for a versatile road and race wheel.

At the top end, the Jet 180 and the full Aero Disc are HED's fastest carbon wheels, built to cut aerodynamic drag on flat and rolling courses. Every set in this collection is carbon, hand-built, and validated in the wind tunnel.

Hubs, Bearings, and Axle Fit

HED disc brake wheels run sealed cartridge bearings for smooth, low-maintenance rolling, with bearing sizes matched to each front and rear hub. Freehub bodies are available for Shimano and SRAM, SRAM XD, and Campagnolo drivetrains, so you can match the wheel to your groupset.

Most disc sets are built around thru-axle frames, with quick-release and axle adapter options depending on the model. If you are moving wheels between bikes or are not sure which axle standard your frame uses, HED can confirm the right setup before you order. The team builds and services these wheels in-house every day.

FAQs

What is the difference between the Vanquish, Vanquish Pro, and Jet disc brake wheels?

The Vanquish is HED's carbon aero wheel, available in 45mm, 62mm, 82mm, and full aero disc depths, built for time trial, triathlon, and fast road riding. The Vanquish Pro runs the same profile in a lighter carbon layup for riders chasing every gram. The Jet RC Pro uses an alloy rim base with a carbon aero fairing, a versatile choice for road racing and long rides, and the Jet 180 is a deep front wheel built for flat-out speed. All are disc brake only.

Are disc brake wheels better than rim brake wheels?

It depends on your bike and how you ride. Disc brake wheels give more consistent stopping in wet conditions and on long descents, allow wider tires with more clearance, and do not wear the rim over time. Rim brake wheels are lighter in some builds and work with older frames. Most new road and gravel frames are built for disc, so if you are buying a new bike or wheelset, disc is usually the right choice. For a full comparison of stopping power, wet-weather control, and upkeep, see our guide on disc brakes vs. rim brakes.

What axle standards do HED disc brake wheels use?

Most HED disc brake wheels are built for thru-axle frames, with 12mm front and 142mm by 12mm rear, the common standard. Quick-release and other axle adapter options are available depending on the model and build year. If you are not sure which standard your frame uses, check your fork and dropout or call HED at (888) 246-3639 before you order.

Are HED disc brake wheels tubeless-compatible?

Yes. HED's current disc brake wheels are tubeless-compatible and ship with tubeless tape installed or included, depending on the model. Mount a tubeless tire and valve, or run tubes if you prefer. For tubeless installation questions on a specific model, contact HED's team.

What freehub options are available?

HED offers freehub bodies for Shimano and SRAM, SRAM XD, and Campagnolo drivetrains. A replacement freehub needs to match your hub's pawl count, and HED freehubs are not cross-compatible with other brands.

What tire width works best with HED disc brake wheels?

The Vanquish and Jet are wind tunnel optimized around a 28mm tire. A wider internal rim lets the same tire measure a touch wider and sit with a rounder profile, which rolls efficiently and corners with support. For a full breakdown of matching tire width to a rim, see our guide on how to measure bike rim size.

Do HED disc brake wheels come with a warranty?

Yes. Every HED wheel comes with a 5-year warranty covering manufacturing defects, and HED offers a crash replacement program with a discount if you damage a wheel in an accident, even if you did not buy it directly from HED. Questions can go to the team at (888) 246-3639 or through the contact page.
