DISC BRAKE AXLE KITS

Regular price $63.00 USD
Sale price $63.00 USD Regular price $70.00
Save $7.00
Front Size
Rear Size
Shipping calculated at checkout.

Pickup available at 1735 Terrace Drive

Usually ready in 2-4 days

DISC BRAKE AXLE KITS

12mm Thru Axle Only / QR 135mm for 545 5 Pawl Hubs with End Cap
  • 1735 Terrace Drive

    Pickup available, usually ready in 2-4 days

    1735 Terrace Drive
    Roseville MN 55113
    United States

    6512357597



Front

12mm Thru-Axle to 15mm Thru-Axle - HU502FAxle

12mm Thru-Axle to Quick Release - HUCLQR-F

15mm Thru-Axle to 12mm Thru-Axle - HUCL12Kit-F

Quick Release to 12mm Thru-Axle - HU503FAxle

Quick Release to 15mm Thru-Axle - HU502FAxle

Rear

Quick Release to Thru-Axle 5 Pawl - HU503RAxle

Thru-Axle to Quick Release 5 Pawl - HUCLQRKit5-R

The 545 hub set is convertible between quick release and thru axle!  When ordering online, please specify in the drop down menu which axle you need.

Note:

Lockring not included. A Shimano external 16 notch lockring, such as the XT M8010 is required to complete the 15mm axle conversion.

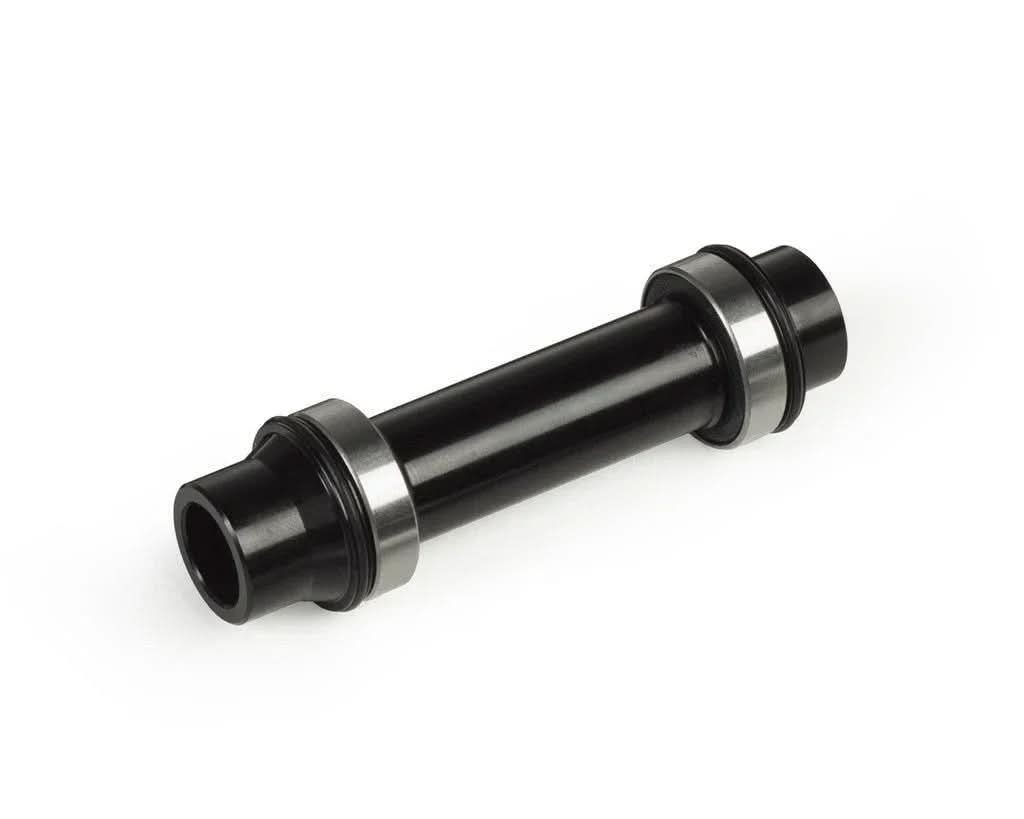

Front Hub conversion from 15mm to 12mm or QR require smaller internal diameter bearings and a center sleeve. These are included in Part #'s HUCL12Kit and HUCLQRKit.

    -Purchase either Kit part # HUCL12Kit to convert from 15mm to 12mm or HUCLQRKit to convert to QR.


* QR axle kits do not include Skewers. HU620 and HU626 sold separately.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Hallam Brooks
Great product, great service!

Big thanks to the team for sorting out a replacement 197mm axle for me!

T
Todd Heiser
Perfect Conversion

Changed my 15 thru axle Vanquish to 12 mm thru axle
