Cycling Rolling Resistance: How Tires, Pressure, and Wheel Setup Impact Speed

At a Glance: Rolling resistance is the energy your tires lose flexing against the road as they roll. You lower it with the right tire, the right pressure, and a wheel setup that lets the tire hold its best shape, which gives you free speed at the same power output.

Rolling resistance is one of the two main forces slowing you down, along with aerodynamic drag. It shows up at every speed; it never fully goes away, and it is one of the easiest places to find speed without training harder.

What Rolling Resistance Actually Is

Rolling resistance is the energy lost as a tire deforms under load and springs back on every rotation. As the rubber tire flexes at the contact patch, the spot where it meets the road, the casing bends and rebounds. That flexing wastes energy as heat, a process called hysteresis.

Two things drive the rolling resistance force:

• Tire deformation: The tire casing flexing at the contact patch, which dominates on a smooth surface

• Surface impact: On a rough surface, small bumps push the bike and rider up, and that costs energy too

Cut the losses from both, and you roll faster for the same effort.

How Much Does Rolling Resistance Matter?

At low and moderate speeds, rolling resistance is a large share of what holds you back. As you speed up, aerodynamic drag grows much faster and takes over, so at high speed air resistance is the bigger problem. Rolling resistance never disappears, though. It stays roughly constant with speed, so on climbs, at lower speeds, and over a long day in the saddle, it adds up fast.

Put two setups under an identical rider, and the one with lower rolling resistance is faster everywhere, with the gap widening the longer you ride.

Tire Width: Why Wider Often Rolls Faster

For years, riders believed a narrower tire was always faster. Testing changed that.

At the same air pressure, a wider tire and a narrower tire press the same total area into the road, but the shape differs. A wider tire makes a short, wide contact patch. A narrower tire makes a long, thin one. The long patch means the casing bends more on each rotation, so it loses more energy.

• Wider tire: shorter contact patch, less flex, lower rolling resistance at matched pressure

• Narrower tire: longer contact patch, more flex, higher rolling resistance at matched pressure

According to figures from Continental, a 25mm tire at 94 psi rolls about the same as a 23mm tire at 123 psi. The wider tire gets there at lower pressure, which also rides smoother. That is one reason modern road bike setups have moved toward wider tires on wider rims. Independent testing at Bicycle Rolling Resistance backs the pattern across a wide range of tire choices.

Tire Pressure: More Is Not Always Faster

Higher pressure feels fast because the tire flexes less on smooth ground. On real roads, it hits a limit.

Every tire has a breakpoint pressure. Below it, lower pressure means more flex and higher rolling resistance. Above it, the tire stops absorbing the road and starts skipping over bumps, which pushes the bike and rider up and wastes energy. That is why too much air can be slower on anything but glass-smooth pavement.

Finding your pressure:

• Start with a pressure chart based on tire width and rider weight

• Drop pressure for a rough road surface, add a little for a smooth surface

• Adjust in small steps until the ride feels planted, not harsh

The same method applies on the road, and our guide to gravel tire pressure walks through the numbers in detail.

Tire Casing and Rubber Matter

Two tires of the same width at the same tire pressure can still roll differently. The tire casing and rubber compound decide a lot.

• Casing: A supple, high thread count casing flexes with less energy loss. Cotton-casing tires like the Specialized S-Works Turbo Cotton are known for low rolling resistance for this reason

• Rubber compound: Fast race compounds cut energy loss, while soft, grippy compounds add it

• Tread: A slick or file tread rolls faster on pavement than a knobby one. On the road, less tread is faster

The fastest tire for a road racer is usually a supple race tire in a fast compound with minimal tread. The trade is puncture resistance, since the thinnest, fastest tires give up some protection.

Tubes vs. Tubeless vs. Tubular

What sits inside the tire changes rolling resistance too.

Inner Tube Options

• Butyl inner tube: The standard tube. Cheap and tough, but the thick rubber flexes with the most energy loss, giving it the highest rolling resistance of the common options

• Latex tubes: More elastic, so they lose less energy. Latex tubes save roughly 2 to 3 watts per tire over butyl, at the cost of holding air for fewer days

• TPU tubes: Light and compact, close to latex on speed, with a plastic valve that needs a little care

Going Tubeless or Tubular

• Tubeless tire: No tube at all, sealed to the rim with sealant. A tubeless road tire rolls about as fast as the same tire with a latex tube, and the sealant closes small punctures on the fly

• Tubular tires: Glued-on race tires with a latex tube sewn inside. Fast, but hard to deal with when you get a flat tire on the road

For most riders, a quality tubeless setup or a fast tire with a latex tube gives near-identical rolling resistance, and tubeless adds puncture protection on top.

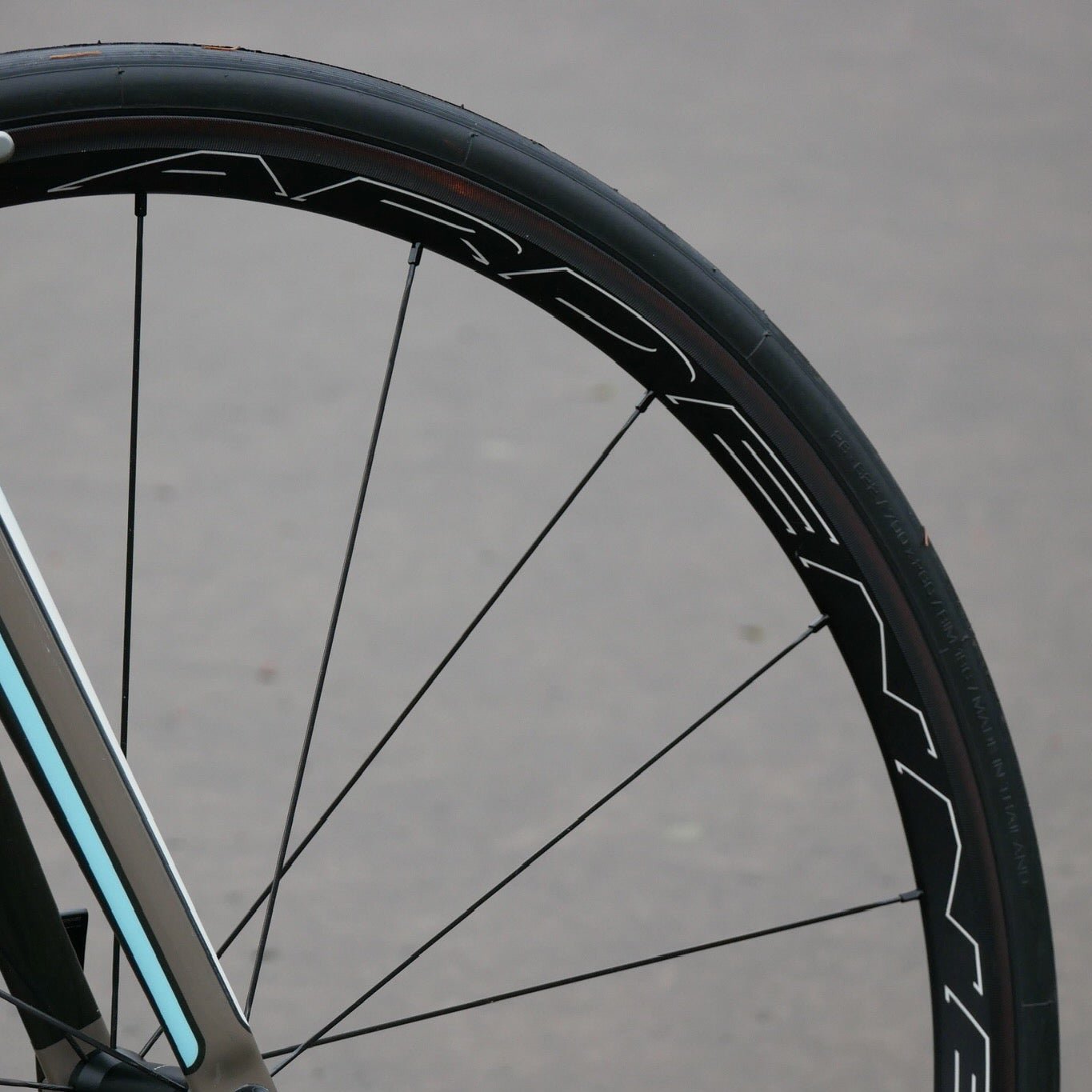

Rim Width and Wheel Setup

The wheel under the tire shapes how the tire performs. A wider internal rim spreads the tire into a rounder, better supported profile, which lets you run lower pressure without the tire folding under load. That supports the short, wide contact patch that rolls with less energy loss.

HED helped push wider rim widths into road and gravel wheels for this reason. Pair a modern tire with a wide, well-built rim, and the tire holds the shape that keeps rolling resistance down. A tire that is not seated firmly also loses energy to tiny movements on the rim, so a precise rim and a clean setup matter.

Other Things That Change Rolling Resistance

A few smaller factors move the number:

• Road surface: Fresh pavement rolls faster than coarse chip seal, no matter the tire

• Ambient temperature: Warmer rubber is more supple, so tires roll a little faster in the heat than in the cold

• Weight: More load presses the tire harder into the road and raises rolling resistance

• Wheel size: At the same contact patch, a larger wheel rolls with slightly less resistance than a small one

You control some of these and not others. The ones worth your time are tire choice, pressure, and the wheel setup underneath.

Roll Faster for the Same Effort

Rolling resistance is free speed waiting to be found. Start with a fast tire in a supple casing, set it to a pressure that suits your road surface and weight, and skip the old habit of pumping to the max. Wider tires on wider rims usually roll faster at lower pressure, and a tubeless or latex setup trims a little more. None of it costs you a watt of power output.
