How to Choose Gravel Tire Pressure Based on Rim Width + Tire Size

The Short Answer: Gravel tire pressure depends on rim width, tire size, rider weight, and terrain. Most gravel riders run between 25 and 45 psi (pounds per square inch), with wider tires at lower pressures and narrower tires at higher pressures.

Tire pressure is one of the most overlooked variables in gravel riding, and one of the most powerful. The right pressure shapes how the bike feels, how it grips, and how fast it rolls. The wrong pressure leaves you bouncing on hardpack or slipping on loose terrain.

Why Tire Pressure Matters More on Gravel Than on Road

Road bike tire pressure recommendations are fairly settled. Gravel is more complex because the surface changes mile to mile, and the tire is doing more work.

• Comfort: Lower pressure absorbs more vibration from rough surfaces

• Traction: A softer tire conforms to gravel, roots, and loose terrain for better grip

• Speed: Counterintuitive but true, lower pressure often rolls faster on rough terrain

• Puncture resistance: Too low and you risk pinch flats, too high and the tire skips over surface imperfections

The right gravel bike tire pressure balances all four. As SILCA's research on tire pressure explains, every tire has a breakpoint pressure where rolling resistance stops improving and starts getting worse. Most riders run higher than that breakpoint because they've been told higher pressure equals faster.

The Four Variables That Drive Tire Pressure

Four factors determine your ideal tire pressure. Knowing how each one shifts the number helps you find your range faster.

1. Tire width

• Wider tires hold more air volume and run at lower pressure

• A 50mm gravel tire runs much lower than a 35mm tire at the same rider weight

• Tire width is the biggest single variable

2. Rim width (internal)

• A wider internal rim shapes the tire into a more supportive profile

• Modern gravel rims (24mm to 25mm internal) let you run lower pressure without the tire feeling squirmy

• A narrower rim with a wide tire creates a light bulb profile that needs higher pressure to feel stable

3. Rider weight

• Heavier riders compress the tire more and need higher pressure to support it

• Total system weight includes the bike, bottles, bags, and any gear

• Add roughly 2 to 3 psi for every 20 pounds above an average reference weight

4. Terrain and conditions

• Smooth gravel and pavement sections call for higher pressure

• Rocky, technical terrain, or wet conditions call for lower pressure

• Tubeless setups handle low pressure better than an inner tube setup

General Tire Pressure Recommendations by Tire Width

These are starting points for an average 160 to 180-pound rider on a tubeless setup. Adjust up for heavier riders and rough terrain, down for lighter riders and smoother surfaces.

• 35mm tire: 35 to 45 psi

• 40mm tire: 30 to 40 psi

• 45mm tire: 25 to 35 psi

• 50mm tire: 22 to 30 psi

• 2.1-inch tire: 18 to 26 psi

These are general recommendations, not absolutes. BikeRadar's gravel tire pressure guide covers how to fine-tune these numbers based on rider weight and conditions, which is the next step after picking a starting point.

Rim Width and Why It Changes the Math

Internal rim width has a bigger effect on tire pressure than most riders realize. The same tire on a 19mm internal rim and a 25mm internal rim behaves differently.

• Wider internal rim: Spreads the tire into a flatter, more supportive profile, lets you run lower pressure without the tire rolling under load

• Narrower internal rim: Pinches the tire into a taller, rounder profile, needs higher pressure to feel stable in corners

Modern gravel wheels are built around wider internal rims (often 24mm to 25mm) for exactly this reason. Pairing a 45mm tire with a wide rim gives you a stable, supportive setup at 28 psi. That same tire on a narrow rim might need 35 psi to feel right.

Tubeless vs Inner Tube: How It Affects Pressure

Whether you're running a tubeless or an inner tube changes how low you can safely go.

Tubeless setup:

• Lets you run 5 to 10 psi lower than a tube setup

• No risk of pinch flats from the rim hitting the tube

• Sealant handles small punctures automatically

• Best option for gravel riding at lower pressures

Inner tube setup:

• Needs higher pressure to avoid pinch flats

• Add 5 to 10 psi over the tubeless recommendation

• Works fine for casual gravel, but limits how low you can go on rough terrain

For serious gravel riding, tubeless is the standard. The pressure flexibility alone justifies the slightly more involved setup.

Lower Pressure, Better Traction

The contact patch is where pressure pays off in traction. Independent testing from Bicycle Rolling Resistance shows that lower tire pressure produces a measurable increase in grip, especially on wet or loose surfaces.

• A wider, lower-pressure tire spreads more rubber across the ground

• The larger contact patch grips loose gravel, sand, and roots better

• Wet conditions amplify the benefit since the tire conforms to surface features instead of skipping across them

The tradeoff is puncture risk. Run too low, and the tire bottoms out on the rim, which can cut the casing or dent the rim. Tubeless setups mitigate this, but don't eliminate it.

Hookless Rims: A Quick Note

If you're running hookless rims, the maximum tire pressure caps out at 72.5 psi by industry standard. That's well above most gravel pressures, so it rarely matters in practice. The note matters more for riders running narrow gravel tires at higher pressures or moving between road and gravel setups.

How to Dial In Your Pressure

Starting numbers get you close. The last few psi come from testing on the bike.

• Start at the middle of your tire's recommended width range

• Ride a familiar route at that pressure

• Adjust in 2 psi increments based on how the bike feels

• Drop pressure if the bike feels harsh, bouncy, or skittish

• Add pressure if you feel the rim hitting the ground, the tire squirming in corners, or the bike feeling sluggish

A bike tire pressure calculator from a reputable source can speed up the process, but real-world testing is what gets you to your optimal tire pressure.

Find the Pressure That Matches Your Ride

Gravel tire pressure isn't a fixed number. It shifts with tire size, rim width, rider weight, and terrain. The starting points in this guide get you close, and a few rides of small adjustments get you the rest of the way. Lower pressure for rough terrain and traction, higher pressure for smooth surfaces and speed. The right gravel bike tire pressure is the one that feels stable, grips well, and rolls smoothly on the surfaces you ride.

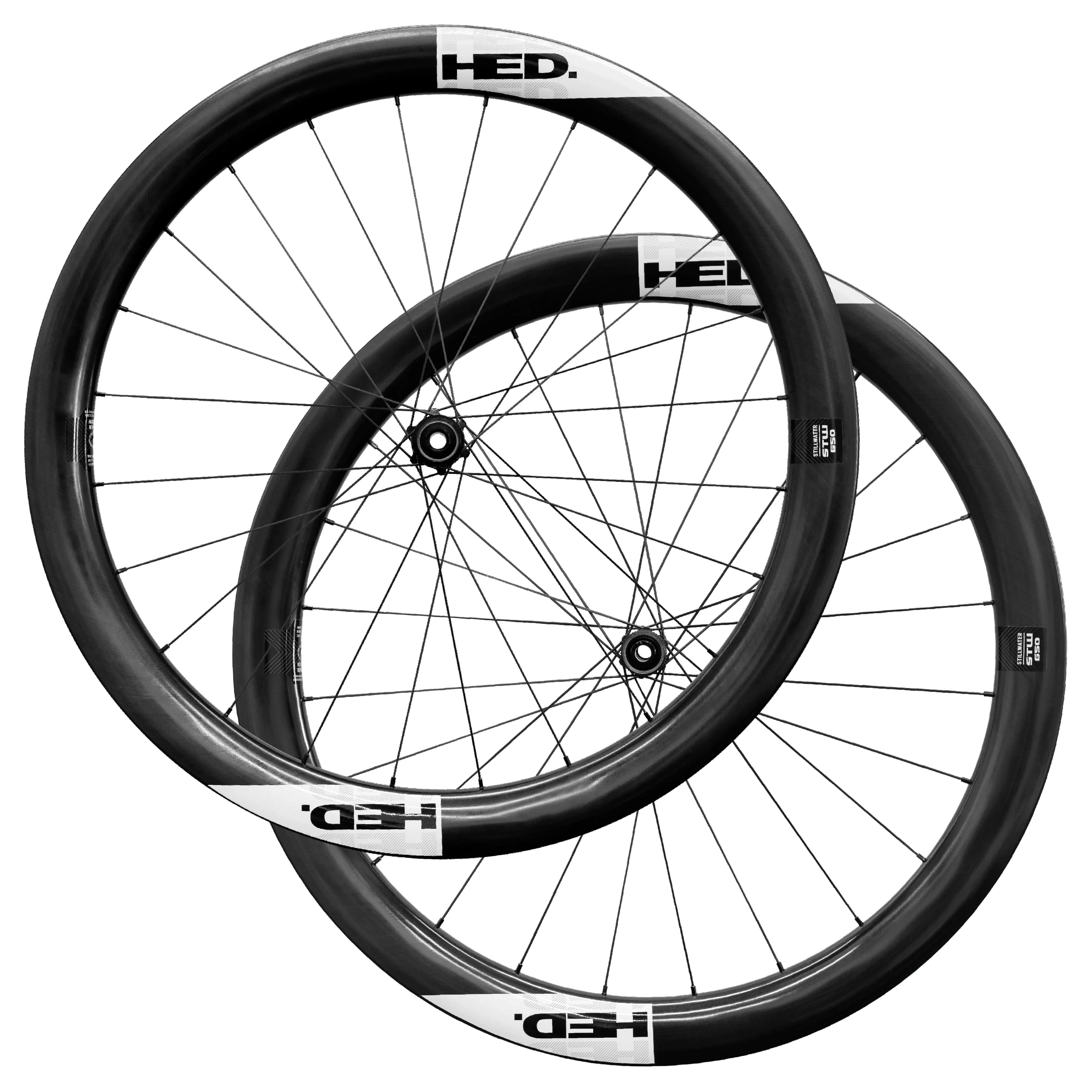

At HED Cycling, we build gravel wheelsets in Roseville, Minnesota, with wider internal rim widths that support the lower pressures modern gravel riding calls for. The Stillwater Gravel Wheelset, Lancaster G25, and Emporia Series all run tubeless-ready with rim profiles built for real-world gravel pressures. For a deeper look at choosing a wheelset, our guide to the best gravel wheelsets breaks down racing, adventure, and bikepacking setups. Browse our full gravel wheel collection or contact our team if you have questions about matching wheels and pressure to your bike.
