Tubeless-Ready Rims: Everything You Need to Know Before Making the Switch

At a Glance: A tubeless-ready rim is built to seal and hold a tubeless tire without an inner tube, but it is not actually tubeless until you add tape, a valve, and sealant. The rim design underneath, especially hooked versus hookless, decides which tires you can run and at what pressure.

Tubeless-ready is one of the most common specs on modern road and gravel wheels. The trouble is that the term gets used loosely, and the rim design beneath it matters more than most riders expect. Plenty of people see "tubeless-ready" on a spec sheet and assume the rim is set to ride tubeless out of the box. That is not how it works.

What "Tubeless-Ready" Actually Means

Tire and wheel makers label things differently, which is why the wording gets confusing. Here is how the categories sort out.

Tubeless-Ready (TLR)

Spoke holes are drilled into the rim bed and need tubeless tape to seal. A tubeless-ready rim runs either a tubeless tire or a conventional tube. This is the most common type by far.

Tubeless (UST)

Spoke holes are sealed or absent, so no rim tape is needed. UST is less common, heavier, and harder to service.

Tubeless Compatible

In most cases, this means the same thing as tubeless-ready. It is just different wording from the tire manufacturer.

Tube-Type

Older rims and tires were never built for an airtight seal. They are not made to go tubeless.

Here is what each one needs to go tubeless:

• Tubeless-Ready (TLR): tubeless tape, a tubeless valve, and sealant.

• Tubeless (UST): a tubeless valve and sealant, no tape needed.

• Tube-Type: not built for tubeless at all.

A tubeless-ready rim gives you the option to run tubeless. It is not tubeless until you add the parts and set it up.

How a Tubeless-Ready Rim Works

Once you know the anatomy, the airtight seal makes sense.

• Rim bed and spoke holes: the center channel, where tubeless tape covers the drilled spoke holes so air cannot escape.

• Bead seat: where the tire bead locks against the rim wall and holds the tire in place under pressure.

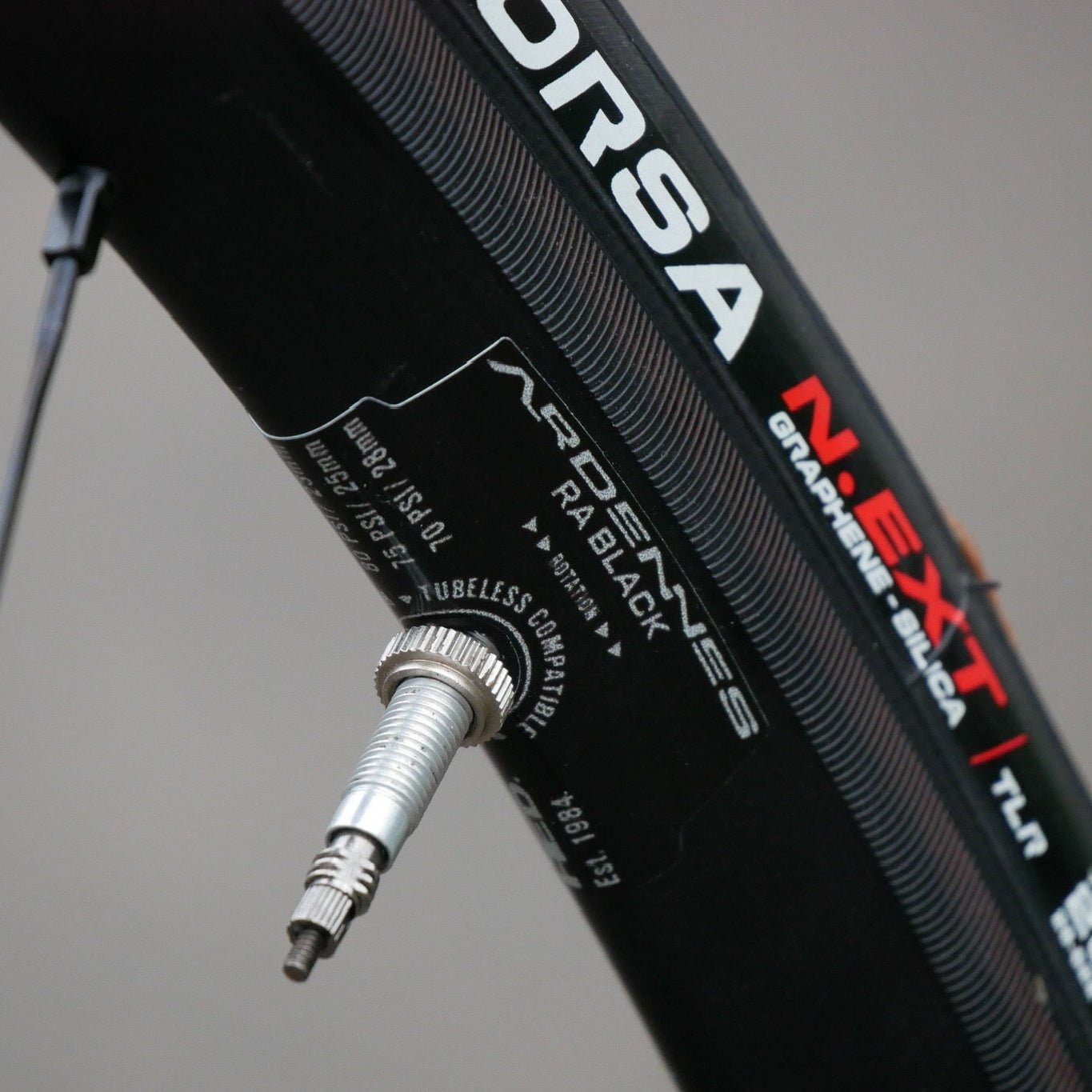

• Valve hole: seats the tubeless valve stem in place of a tube's valve.

• The seal itself: rim tape closes the rim, the tire bead seals against the rim wall, and tubeless sealant fills any gaps that remain.

Sealant is not optional on a TLR setup. It holds the seal and plugs a small puncture while you ride.

Hooked vs. Hookless: The Design Difference That Matters Most

• Hooked rims have a small inward flange at the top of the rim wall. That flange grips the tire bead and locks it mechanically, even at higher pressure.

• Hookless rims have a straight rim wall with no flange. They rely on tight tolerances and tire pressure alone to hold the bead.

Here is how they compare across the things that matter most:

• Tire retention: hooked rims use a mechanical bead lock; hookless rims rely on friction and tolerance.

• Tire compatibility: hooked rims take tubeless-ready and tube-type tires; hookless rims take approved tubeless tires only.

• Pressure range: hooked rims support higher pressure; hookless rims have a lower pressure ceiling.

• Roadside repair: hooked rims let you drop in a tube anytime; hookless rims have limited tube options.

• Best suited for: hooked rims fit road, tri, and mixed setups; hookless rims fit wide, low-pressure tires.

We build hooked rims by design. A hooked rim accepts almost any tire at almost any pressure, gives a mechanical safety margin when pressure climbs, and lets you drop in a tube on the road if a tubeless setup fails.

A hookless rim ties you to wider tires, lower pressures, and a shorter list of approved tires. Hookless setups also carry a lower maximum pressure rating, so you have to match an approved tubeless compatible tire and stay within it.

Why Riders Make the Switch to Tubeless

The benefits are real and worth understanding before you commit.

• Lower tire pressure without the pinch flat risk a tube brings. Running lower tire pressure improves grip and comfort over rough pavement, and there is no tube inside to pinch.

• Self-sealing punctures. Tubeless sealant plugs a small puncture before it flattens the tire, often without you noticing on the road.

• Lower rolling resistance at matched comfort, because no tube rubs inside the tire. Independent roller testing from Bicycle Rolling Resistance found the same tire rolls faster set up tubeless than with a standard butyl tube, the kind most riders run.

• Better tire and rim pairing. A wider inner rim width supports higher-volume tires that ride smoother and corner with more confidence. Our carbon rims are built around wider rim profiles for this reason.

There can be a small weight saving, though sealant and tape add some of that back. Most riders switch for the ride quality and puncture protection, not the lighter weight.

What a Tubeless Setup Requires

Knowing the parts list shows the real effort and cost of switching.

• Tubeless-ready tire: it has to carry a TLR or tubeless compatible rating, not a standard clincher.

• Tubeless tape: sized to the inner rim width and applied cleanly across the rim bed. Gorilla tape gets used as a do-it-yourself rim strip, but purpose-made tubeless tape seals more reliably.

• Tubeless valve: matched to the depth of the rim so the valve stem seats correctly.

• Tubeless sealant: the right volume for your tire size.

• An air source: a floor pump with enough volume, or an air compressor, to seat the bead with a fast burst of air.

One note on tire installation: the bead has to snap into the bead seat, which is why a strong burst of air matters during setup.

What to Weigh Before You Switch

An honest look at the tradeoffs makes the decision an informed one.

• Setting up a tubeless system takes more effort than mounting a tire and tube.

• Sealant dries out and needs topping up every few months.

• The process can get messy during installation and repair.

• A poor seal means starting over, which is why tape width and a clean rim bed matter.

On a quality hooked tubeless-ready rim, most of these are one-time learning curves. The tube fallback is always there if you need it.

Ready When You Are

A tubeless-ready rim gives you the option to run tubeless. A hooked design gives you the freedom to run it your way, at the pressure and tire choice that fit how you ride.

The setup asks for a little more effort up front. The payoff in ride quality, grip, and puncture protection is what keeps riders from going back.

We have hand-built wheels in Roseville, Minnesota, since 1984, and every HED rim uses a hooked design, so your tire and pressure options stay open. Browse our tubeless ready carbon wheels for hooked options across road and triathlon and gravel. Have questions about matching a wheelset and tire setup? Reach out to our team, and we will help you get it right.
