Regular price
$1,850.00
Sale price
$1,850.00
Regular price

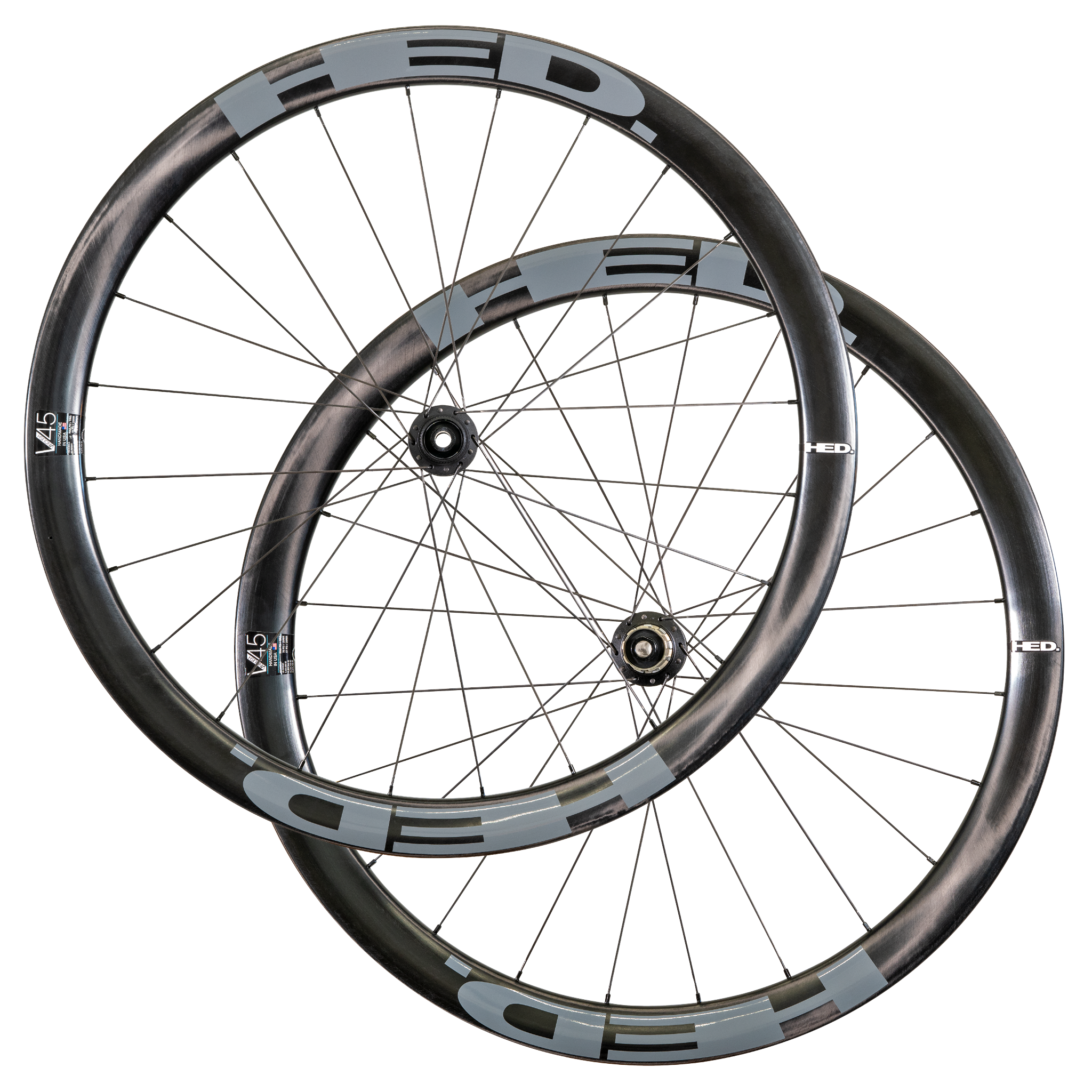

HED Vanquish V45 Carbon Aero Wheelset
Weight 1653g ± 30g
Depth 45 mm
Width ext 30.9 mm
Width int 22.4 mm
Size 700c
The Vanquish V45 is HED’s versatile mid-depth carbon wheelset for road racing, fast group rides, climbing, and all-road riding. Its 45mm aerodynamic rim profile delivers meaningful drag reduction without the handling penalty riders often associate with deeper wheels.
Designed, manufactured, and hand-built in Minnesota.
Optimized for 28mm tires.
Every HED wheelset is backed by a 5-year limited warranty against defects in materials and workmanship when purchased from HED or an authorized HED dealer.
Vanquish carbon rims are manufactured at HED’s facility in Roseville, Minnesota. Each wheel is then hand-built, tensioned, trued, and inspected by our team before shipping.
Questions about tire compatibility, setup, freehubs, replacement parts, or service? Get support directly from the people who build and service HED wheels.
Split your purchase into manageable payments using available Shop Pay Installments options at checkout.
Eligibility, terms, and payment options are shown during checkout.
Learn more about finance options here.
Designed for More.
The Vanquish V45 is built for riders who want aerodynamic speed without committing to an ultra-deep rim.
At 45mm deep, it is shallow enough for climbing, variable wind, and everyday riding, yet deep enough to deliver a meaningful aerodynamic advantage over a conventional low-profile wheel.
Its wide rim profile is designed around modern road tires, creating a smoother transition between tire and rim while providing greater support through hard cornering.
The result is a fast, composed wheelset that performs beyond race day.
Key Features.
Technology.
The Vanquish V45 uses a 45mm-deep carbon rim profile designed to balance aerodynamic efficiency with predictable handling across changing wind conditions. Its 22.4mm internal width supports modern road tires, helping create a stable tire shape for confident cornering, improved comfort, and lower rolling resistance.
Optimized around 28mm tires, the V45 is versatile enough for road racing, fast group rides, climbing, and everyday performance riding. The hooked rim design supports both tubeless setups and traditional clincher tires with inner tubes.
HED GP Performance Centerlock hubs use sealed EZO Japan cartridge bearings for smooth rotation, dependable durability, and straightforward long-term service. The rear hub features a four-pawl freehub system with 13-degree engagement for reliable power transfer under acceleration.
Each wheel is built with 24 Sapim Sprint spokes and is individually tensioned, trued, and inspected by hand at HED’s facility in Roseville, Minnesota. The result is a responsive, serviceable wheelset built for speed in real-world conditions.
Full Specs.
Rims
45mm-deep carbon rim with a hooked, tubeless-ready profile. The 30.9mm external width and 22.4mm internal width are designed around modern road tires for aerodynamic efficiency, confident cornering, and predictable handling.
Spokes
24 front and 24 rear Sapim Sprint spokes. The double-butted construction adds stiffness through the center section while maintaining durability and fatigue resistance for racing and everyday riding.
Nipples
External alloy nipples allow straightforward truing and long-term wheel service. Each wheel is individually tensioned, dished, and inspected by hand at HED’s Roseville, Minnesota facility.
Front Hub
HED GP Performance Centerlock disc hub with a 12x100mm thru-axle interface. Sealed EZO Japan cartridge bearings provide smooth rotation, dependable durability, and easy serviceability.
Rear Hub
HED GP Performance Centerlock disc hub with a 12x142mm thru-axle interface. The four-pawl freehub system delivers reliable power transfer with 13-degree engagement.
Bearings
Sealed EZO Japan cartridge bearings are used throughout the hub system for smooth performance, weather resistance, and straightforward replacement during routine service.
Tire Information
Optimized around a 28mm measured road tire. The hooked rim supports both tubeless tires and conventional clincher tires with inner tubes. Always confirm tire and frame compatibility before riding.
Axle Sizes
Front: 12x100mm thru axle
Rear: 12x142mm thru axle
Rotor interface: Centerlock
Technology That Performs.
Rims
The Vanquish V45 uses a 45mm-deep carbon rim developed for aerodynamic efficiency and predictable handling in changing wind conditions. Its 30.9mm external width creates a smooth transition between the tire and rim, while the 22.4mm internal width supports modern road tires for confident cornering and improved ride quality.
The hooked, tubeless-compatible profile is optimized around a 28mm measured tire and can also be ridden with conventional clincher tires and inner tubes. Each carbon rim is manufactured by HED in Minnesota.

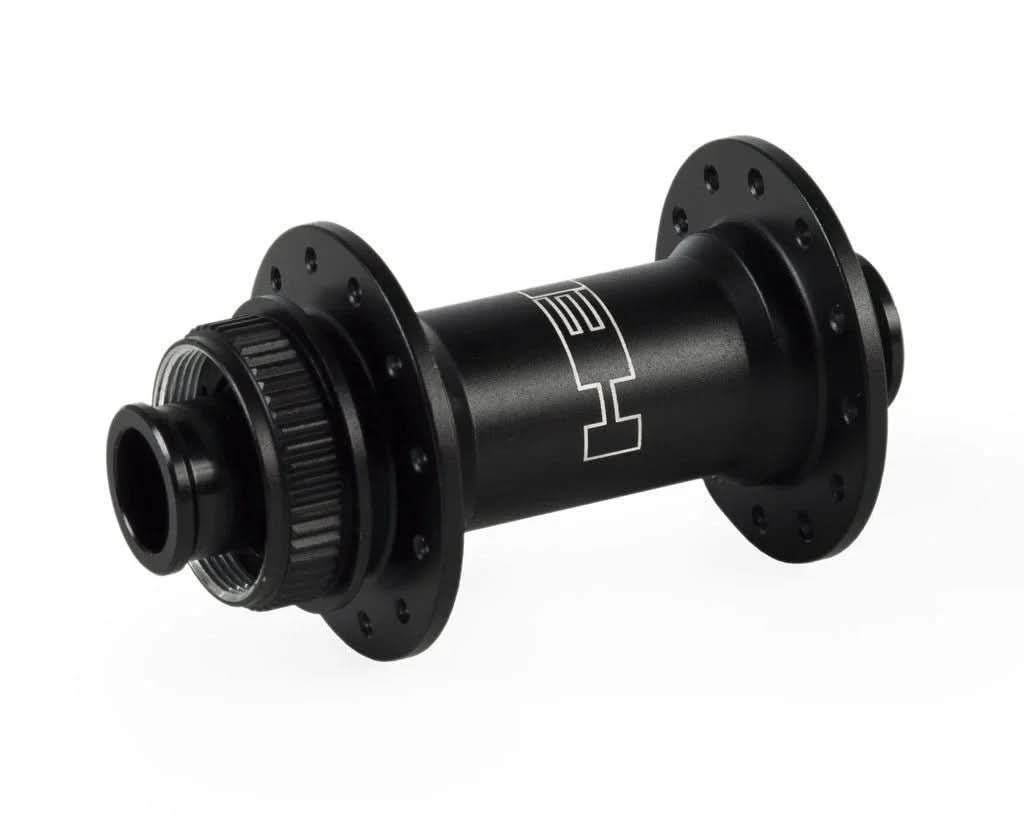

HED GP Performance Hubs
HED GP Performance Centerlock hubs are built for reliable power transfer, smooth rotation, and straightforward long-term service.
The front hub uses a 12x100mm thru axle and two sealed EZO Japan 6902RS cartridge bearings. The rear uses a 12x142mm thru axle, four sealed EZO Japan 6902RS bearings, and a four-pawl freehub mechanism with 13-degree engagement.
Freehub options include Shimano HG, SRAM XDR, and Campagnolo-compatible configurations.
Spokes
Each Vanquish V45 wheel is built with 24 Sapim Sprint spokes. Their reinforced center section provides additional lateral stiffness while retaining the fatigue resistance and serviceability of a double-butted spoke.
Every wheel is individually tensioned, dished, trued, and inspected by HED’s wheel-building team in Roseville, Minnesota.
Expert Reviews
Tested by road.cc
“Smooth rolling and well rounded, offering aero gains without handling instability in blustery conditions.”
Excellent build quality · Impressive crosswind stability
Warranty.
Every HED wheel is backed by a 5-year limited warranty covering defects in materials and workmanship. Coverage begins on the original purchase date and applies to the original purchaser. Qualifying products may be repaired or replaced at HED’s discretion.
Questions? Contact HED Support: (888) 246-3639
