Vanquish

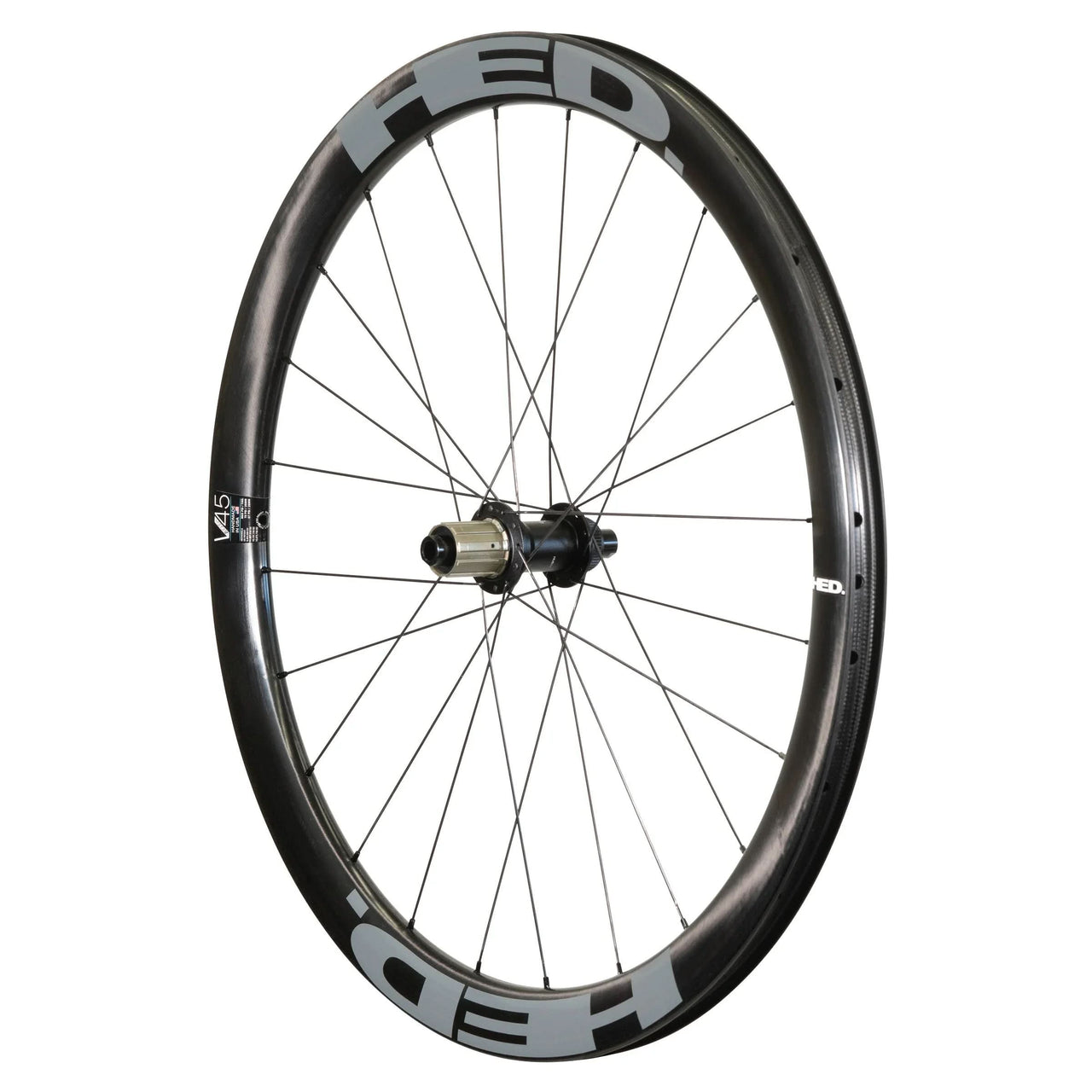

Vanquish // V45 & V62
Designed by the same minds and handmade by the same hands that created the Vanquish Pro series, this wallet-friendly option offers the same aerodynamic rim profile and performance edge as our pro line at a price point that saves room in the budget for a few equally fast kits. Going fast is about drag reduction AND predictability.
Get ready to turn heads at the next group ride.
Need an 84mm or Full Aero Disc? Go Pro: Click Here
FEATURES:
- Handmade in the USA
- Rim depth options of 45mm and 62mm
- 22.4mm Internal Width, 30.9mm External Width Rims
- HED GP Performance Centerlock Disc Brake Hubs
- Tubeless Compatible
Vanquish 45 Overview:
Intended Use: Road Race/All-Road
Tubeless Compatible
Inner rim width: 22.4mm
Optimal Tire Size: 28c
Rim Specs:
Rim Weight 453g ± 60.4g
Internal Width: 22.4mm
External Width: 30.9mm
Depth: 45mm
Hole Count: 24
ERD (Includes Washers): 555
Wheelset Build:
Hubs:
Front Hub: 12x100mm axle. Centerlock
Bearing: EZO Japan 6902RS x 2
Rear Hub: 12x142mm axle. Centerlock.
Freehub: 4 pawl: 13 degree engagement.
Bearing: EZO Japan 6902RS x 4
Spokes:
Sapim Race, hooked
Wheelset Weights:
Front: 757 Grams
Rear: 896 Grams
Wheelset:1653 Grams
V62 Overview:
Intended Use: Road Race / TT / Triathlon
Tubeless Compatible
Inner rim width: 22.4mm
Optimal Tire Size: 28c
Rim Specs:
Rim Weight 518g ± 2.3g
Internal Width: 22.4mm
External Width: 31.1mm
Depth: 62mm
Hole Count: 24
ERD (Includes Washers): 524
Wheelset Build:
Hubs:
Front Hub: 12x100mm axle. Centerlock brake
Bearing: EZO Japan 6902RS x 2
Rear Hub: 12x142mm axle. Centerlock brake
Freehub: 4 pawl: 13 degree engagement.
Bearing: EZO Japan 6902RS x 4
Spokes:
Sapim Race, hooked
Wheelset Weights:
Front: 789 Grams
Rear: 921 Grams
Wheelset: 1710 Grams
Standard
Metric
1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.
2. Tire pressure = 80psi MAX
3. We do NOT recommend hanging a bike equipped with Vanquish wheels from hooks – this can damage the carbon skin and will not be covered under warranty.
- Stable crosswind handling characteristics were retained to greater than 70% of typical cycling yaw angles
- 25mm-28mm tires are optimal for performance
HED Engineering Team:
The next generation of Vanquish wheels performed remarkably in the wind tunnel. Across the line we saw improvements in stability while keeping drag to a minimum. Riders can expect a consistent push forward from their new wheels and at the same time count on stable crosswind handling characteristics.
